Qingdao Norton Door Technology Co., Ltd. specializes in the production of large-scale industrial doors and premium garage doors, backed by the assurance of ISO9001 and European CE certifications. Our commitment to quality is unwavering, and we pride ourselves on delivering products that exceed expectations.
Our Outdoor Insulation Aluminum Spiral Rapid Door are particularly noteworthy for their swift opening and closing speeds, durability, safety features, and aesthetic appeal. Designed to meet the most stringent demands for high-quality performance, these doors are the perfect solution for warehouses and other industrial settings where efficiency and reliability are paramount.
By choosing Norton, you are choosing professionalism and quality. We are dedicated to providing our customers with the best possible products and services, ensuring that your investment in our doors yields long-term benefits and satisfaction. Trust us to be your partner in achieving excellence in your industrial or commercial space.

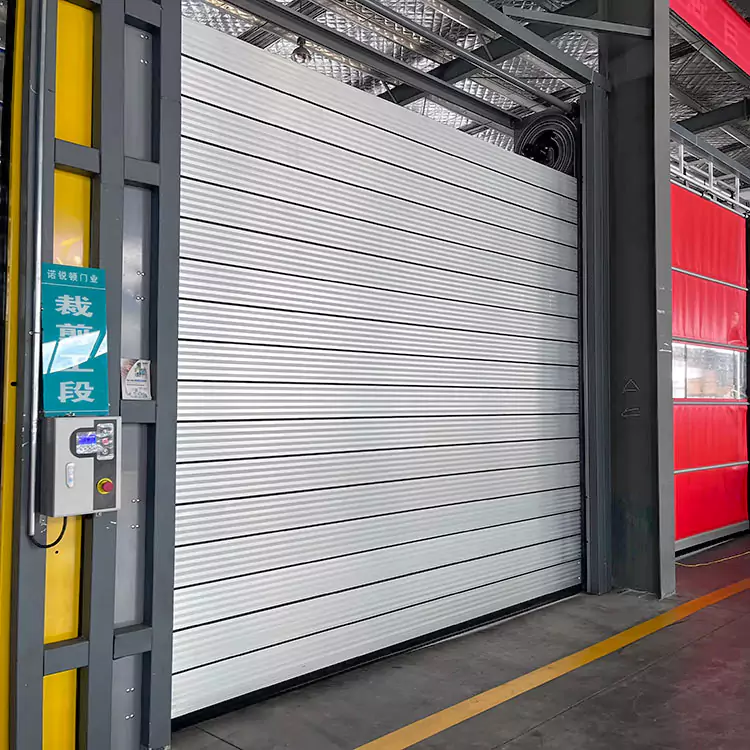

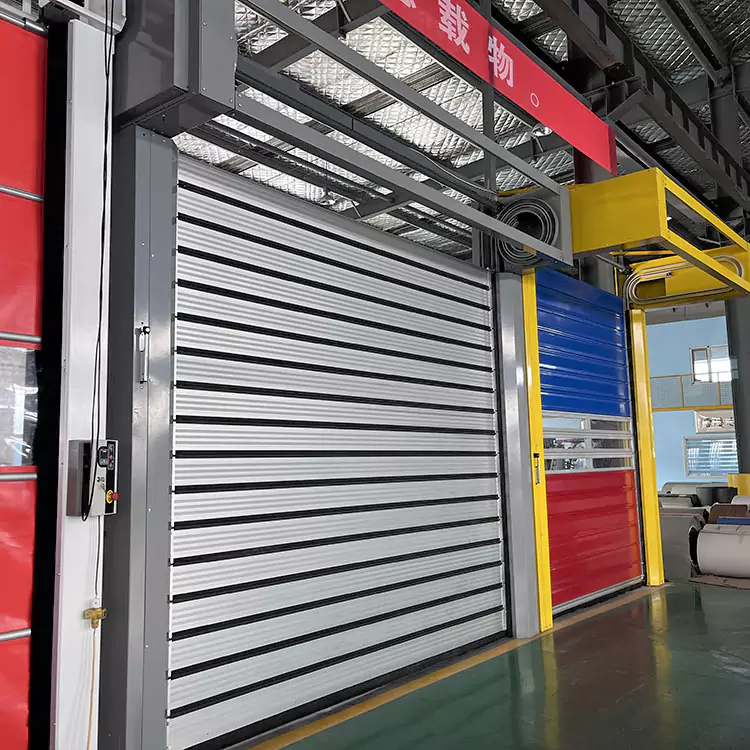

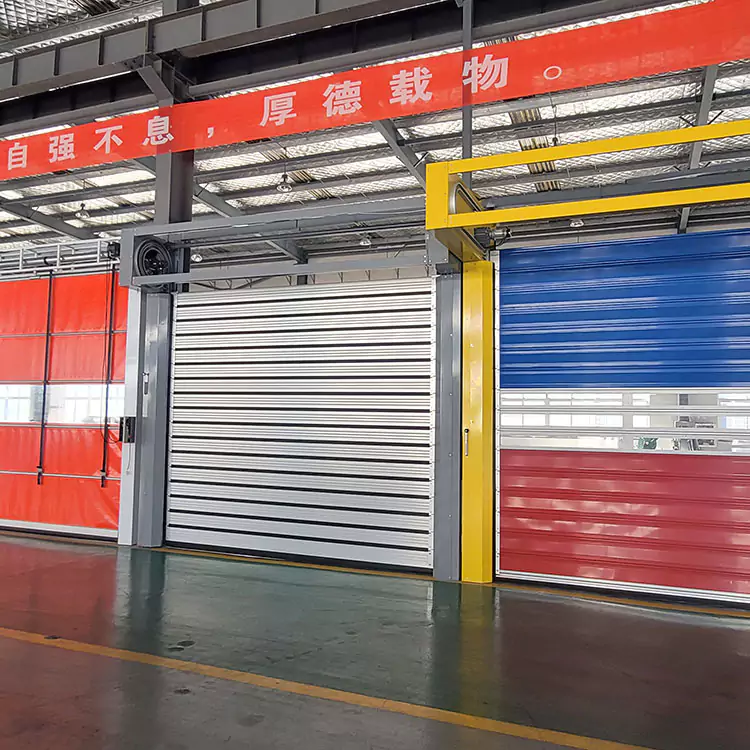

Qingdao Norton Door Technology Co., Ltd. proudly introduces its customized Outdoor Insulation Aluminum Spiral Rapid Door, an industrial door solution that seamlessly integrates high performance, supreme safety, and outstanding design. Crafted with advanced aluminum alloy materials and turbine drive technology, this product is tailored to industrial and commercial environments that prioritize efficiency, safety, and aesthetics.
The customized Outdoor Insulation Aluminum Spiral Rapid Door boasts superior door panel performance, rapid operation speeds, an advanced control system, and minimal installation space requirements.
Product Parameter
Product Name
High Speed Aluminum Spiral Door
Material
Aluminum+PU foam insulation+organic glass window
Color
White, Dark Grey, Silver Grey, Red, Yellow
Panel thickness
40mm
Standard
ISO9001, CE
Opening Speed
1.2 to 2.5m/s, adjustable
Closing Speed
0.6m/s, adjustable
Wind resistance
3.5kPa, 120km/h
Inverter
Taiwan Shilin Brand
Motor Voltage
110V, 60HZ, or 220V 50HZ, or 380V 50HZ
Motor Power Output
0.75KW, 1.5KW, 2.3KW and so on
Used
building industry, logistics
Product Feature And Application
Features of Qingdao Norton's Customized Outdoor Insulation Aluminum Spiral Rapid Door:
Exceptional Door Panel Performance: The door's sleek design complements various architectural styles. The panel options include aluminum alloy foam and aluminum alloy translucent panels. The aluminum alloy foam panels offer exceptional insulation, heat-resistance, and noise reduction properties. The translucent panels, on the other hand, allow high light transmission, making them ideal for display areas or modern architectural designs. They can also be combined with foam panels to serve as both a window and a protective barrier.
Rapid Operation Speed: Equipped with a dual-turbine structure guide rail, the door accelerates smoothly and maintains stability even at high speeds, enhancing safety and minimizing noise. The adjustable opening speed, reaching up to 2.5m/s, makes it the premier choice for high-traffic entryways in industries such as chemicals, pharmaceuticals, automotive, food processing, and logistics.
Advanced Control System: The variable frequency control system significantly reduces stress and impact on mechanical components, ensuring a quiet and seamless opening and closing process. The gentle action during both opening and closing significantly mitigates mechanical wear, thereby extending the door's lifespan.
Space-Efficient Installation and Energy Efficiency: Designed for minimal space occupation, the door's installation is straightforward and efficient. Its smooth and stable operation not only ensures productivity but also contributes to energy savings, making it an environmentally friendly and cost-effective solution.
Spiral Structure: This door incorporates a spiral-structured guide rail, a design that enhances the smoothness and fluidity of the door's opening and closing motions, significantly reducing noise and vibration.
Turbine Drive Technology: Equipped with an advanced turbine drive system, it supplies robust power to the door, ensuring swift and precise opening and closing operations. Additionally, the turbine drive boasts low noise levels and energy consumption, making it an environmentally friendly and efficient choice.
(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.
Three lift styles
Sure, here's a more concise version:
Based on headroom availability, 3 lifting styles are optional:
Circular Spiral: Min. 0.85m for 3m door, 1m for 5m door.
Oval Spiral: Min. 0.7m, offering space-efficient lifting.
Red Color Panel
Red is our standard color
Yellow Color Panel
RAL1021 yellow color is popular
Silver Grey Color Panel
Silver Grey is our standard color
Guide Rail
Semi-Automatic PET Bottle
Oval Spiral guide rail
For headroom Min 0.7m
Spiral Guide Rail
For headroom Min 0.7m
Blowing Machine Bottle Making
Machine Bottle Moulding Machine.
Multiple opening methods
Offering versatility, the door features multiple opening methods including geomagnetic, radar, mobile phone WiFi, remote control, wall switch, and even emergency power failure operation. For safety, it is equipped with infrared sensors and an airbag on the bottom edge.
Emergency handle
turbine guide track&motor
organic glass window
Good airtightness
heat preservation
noise preventionn
Good airtightness, heat preservation and noise preventionn
Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material,heat insulation and noise prevention
Norton Industrial Door Motors:
Incorporating cutting-edge UK technology, our variable frequency motors automatically adjust their speed according to the door's height and weight, ensuring smooth and efficient operation. Designed with safety in mind, these motors feature anti-crushing and anti-collision mechanisms that instantly reverse upon encountering any obstruction, coupled with soft start and stop functions for added safety and reduced wear.
Motor
Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop
switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.
Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.
Limit: Absolute encoder
Output speed: 100R/Min Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop
Output aperture: Dia.25.4mm Operating temperature range: -20 to 45°C A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on。
Outdoor Insulated Aluminum Spiral Rapid Door Production:
Qingdao Norton Door Industry Technology Manufacturing Co., Ltd. prioritizes meeting customer needs in the production of outdoor insulated aluminum spiral rapid doors. We offer a one-stop service encompassing design, production, installation, and maintenance, ensuring that customers have no worries during the entire usage process. Equipped with superior production equipment and a skilled technical team, we efficiently and precisely complete the production tasks of outdoor insulated aluminum spiral rapid doors.
Outdoor Insulated Aluminum Spiral Rapid Door Packaging:
We pledge that our products are delivered in a ready-to-install state, eliminating the need for additional operations. This ensures a seamless and hassle-free installation process, making your experience even more convenient and worry-free.
Packing Details :
For full container order, carton box package. For partial container order, packed by wooden box.
