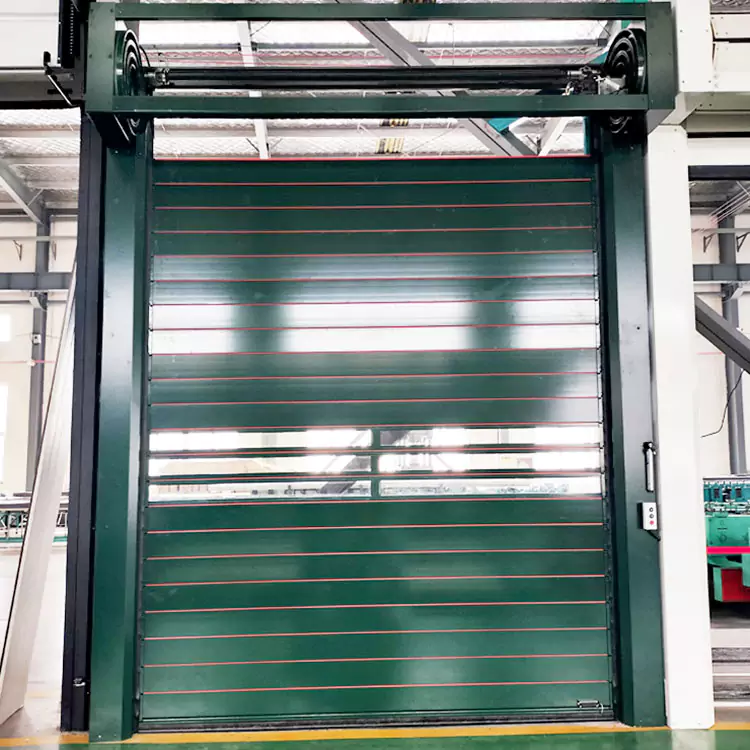

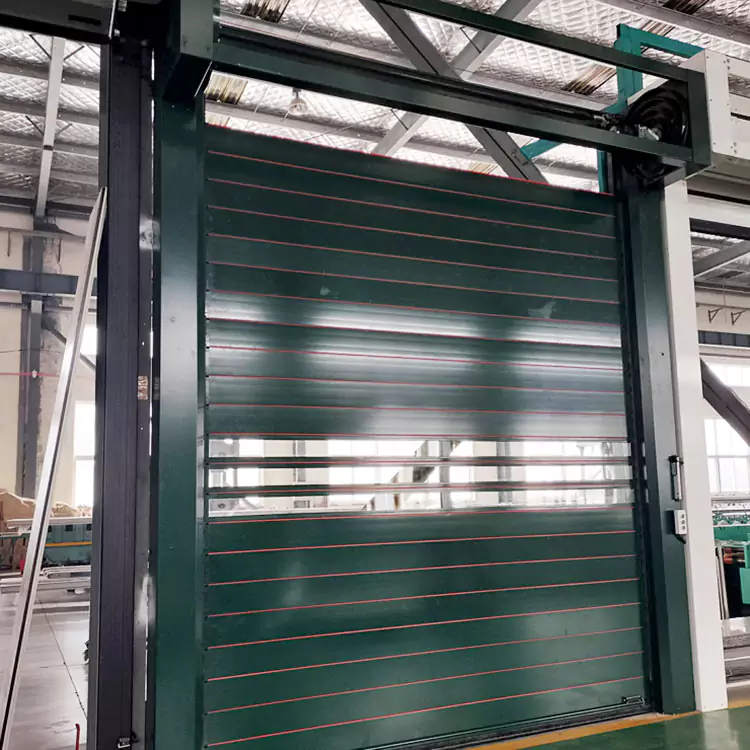

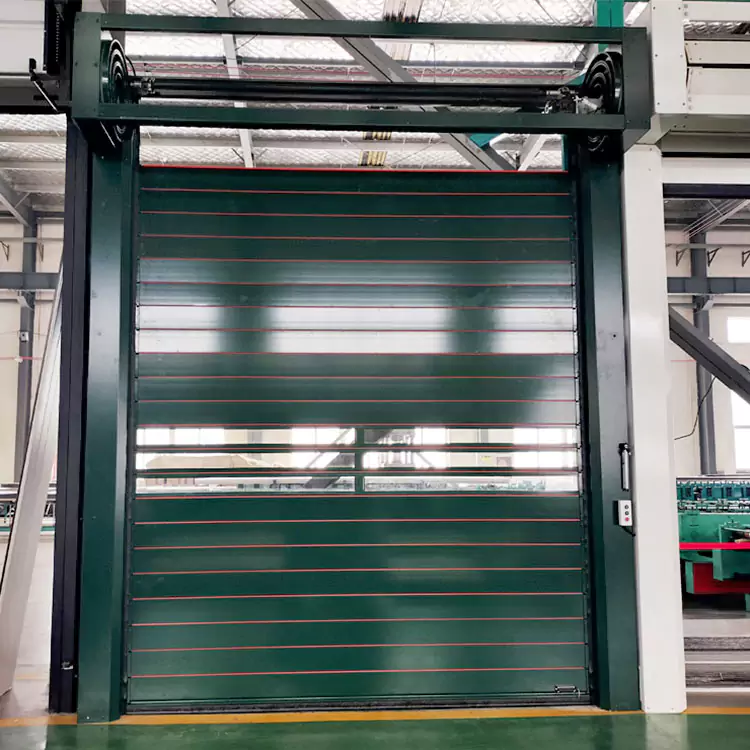

Modern Rapid Aluminum Roller Shutter Door

Qingdao Norton Door Technology Co., Ltd. proudly introduces its customized Modern Rapid Aluminum Roller Shutter Door, an industrial door solution that integrates high efficiency, superior safety, and outstanding design. Crafted with advanced aluminum alloy materials and turbo drive technology, this product is tailored specifically for industrial and commercial environments that prioritize efficiency, safety, and aesthetics.

Boasting exceptional door panel performance, swift operational speed, and an advanced control system, the customized Modern Rapid Aluminum Roller Shutter Door also features minimal installation space requirements, making it the ideal choice for a wide range of applications.

Product Parameter

Product Feature And Application

Features of Qingdao Norton's Customized Modern Rapid Aluminum Rolling Shutter Door:

Excellent Panel Performance: The door boasts an aesthetically pleasing design, offering a choice between aluminum alloy foam-filled panels and aluminum alloy see-through panels. The foam-filled panels provide exceptional insulation, heat retention, and noise reduction, while the see-through panels offer strong light transmission, making them ideal for display areas or modern architectural styles. These see-through panels can also be used in conjunction with foam-filled panels, serving as a unique blend of visibility and insulation.

Rapid Operation Speed: Employing a dual-turbine guide rail system, the door achieves swift acceleration and ensures smooth, stable operation at heights, enhancing safety and minimizing noise. With adjustable opening speeds reaching up to 2.5m/s, it is the optimal choice for high-traffic entrances and exits in industries such as chemicals, pharmaceuticals, automotive, food processing, and logistics.

Advanced Control System: The incorporated variable frequency control system significantly reduces stress and impact on mechanical components, ensuring a quiet and seamless opening and closing process. The gentle start and stop mechanisms significantly mitigate mechanical wear, thereby extending the door's lifespan.

Space-Saving Installation: Designed for efficient use of space, the door operates smoothly, quietly, and with energy efficiency. Its compact installation requirements make it a practical solution for a wide range of industrial and commercial settings.

Product Details

Detail display of Qingdao Norton custom-made Modern Rapid Aluminum Roller Shutter Door：

Spiral Structure: The door employs a spiral-structured guide rail, which ensures a smoother and more seamless opening and closing process for the door body. This design minimizes noise and vibrations, enhancing the overall user experience.

Turbine Drive Technology: Equipped with an advanced turbine drive system, it provides robust power support to the door body, ensuring rapid and precise opening and closing. Additionally, the turbine drive boasts low noise emission and energy consumption, making it an environmentally friendly and cost-effective choice.

(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.

Three lift styles

According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.

Blowing Machine Bottle Making

Machine Bottle Moulding Machine.

Multiple opening methods

Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.

Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material,heat insulation and noise prevention

Norton industrial door motor: Introduced British technology, frequency conversion motor, frequency adjustment with the change of door height and weight, anti-pressure and anti-collision, rebound when encountering resistance, slow start and slow stop.

Motor

Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop
switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.

Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.

Limit: Absolute encoder
Output speed: 100R/Min Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop

Output aperture: Dia.25.4mm Operating temperature range: -20 to 45°C A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on。

Outdoor Modern Rapid Aluminum Roller Shutter Door Production:

Qingdao Norton Door Technology Co., Ltd. takes meeting customer needs as the starting point in the production of outdoor insulated aluminum spiral rapid doors. We provide a one-stop service ranging from design, production, to installation and maintenance, ensuring that customers have no worries during the entire usage process. Equipped with superior production equipment and a skilled technical team, we are capable of efficiently and precisely completing the production tasks of outdoor insulated aluminum spiral rapid doors.

Outdoor Modern Rapid Aluminum Roller Shutter Door Packaging:

We commit to delivering our products in a ready-to-install state, eliminating the need for additional operations. This ensures effortless installation and hassle-free usage for you.

Packing Details :

For full container order, carton box package.  For partial container order, packed by wooden box.

Delivery
