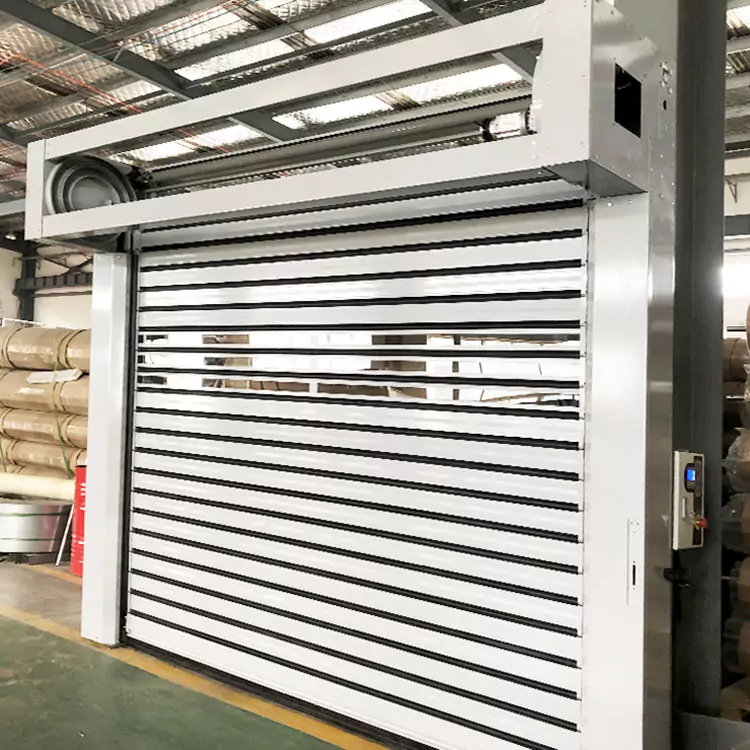

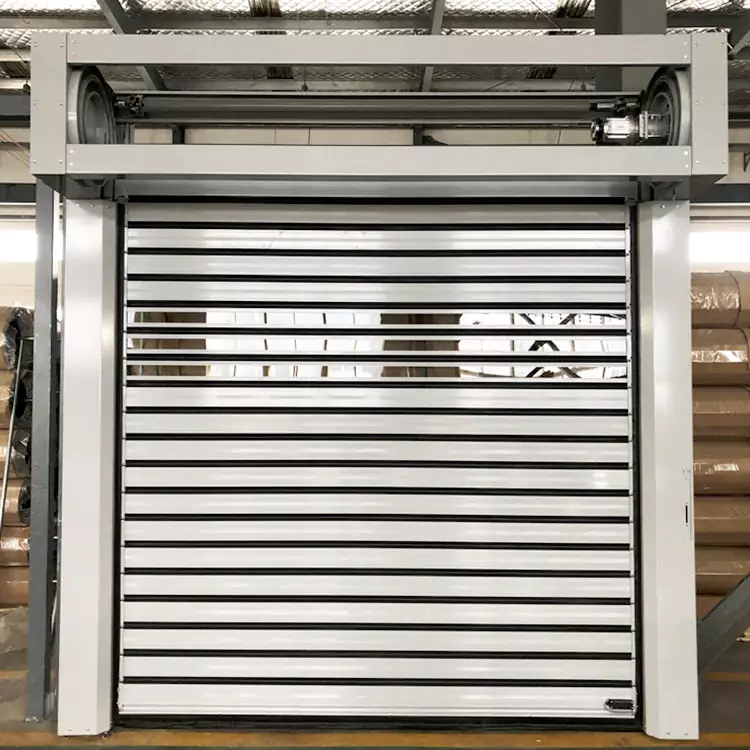

Warehouse Fast Speed Roller Shutter Door

Qingdao Norton Door Technology Co., Ltd. proudly introduces its warehouse fast speed roller shutter door, an industrial door solution integrating high efficiency, high safety and excellent design. This product adopts advanced aluminum alloy material and turbine drive technology, and is specially tailored for the industrial and commercial environment that pursues high efficiency, safety and beauty. Qingdao Norton Door Technology Co., Ltd. proudly launched its warehouse quick shutter door, an industrial door solution with high efficiency, high safety and excellent design. This product adopts advanced aluminum alloy material and turbine drive technology, and is specially tailored for the industrial and commercial environment that pursues high efficiency, safety and beauty. The quick rolling shutter door in warehouse has good performance, fast running speed, advanced control system and small installation space.

Product Parameter

Product Feature And Application

Characteristics of quick shutter doors in Qingdao Norton Warehouse：

The spiral circular non-contact track is used, and the panels are not connected to each other when the curtain is rolled, so the panel material will not be worn, deformed.The friction is reduced and the door runs fast, and has no noise.
The door run smoothly, fast and stable. It is suitable for high frequency operation.

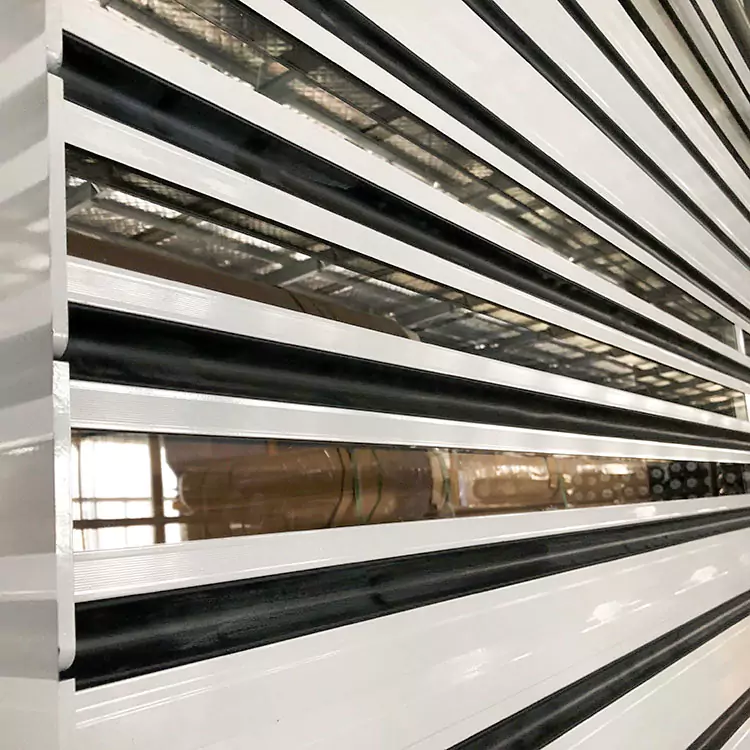

Product Details

(1) Door Panel thickness is not less than 40mm.
(2)The surface is anodized and organic colored.
(3)The interior is filled with polyurethane (excluding CFC) foam.
(4)Adopt international advanced bridge insulation treatment.
(5)The hinge load-bearing design makes the curtain joints unstressed, the door panels are not in contact, and the flatness can be maintained after long-term use.

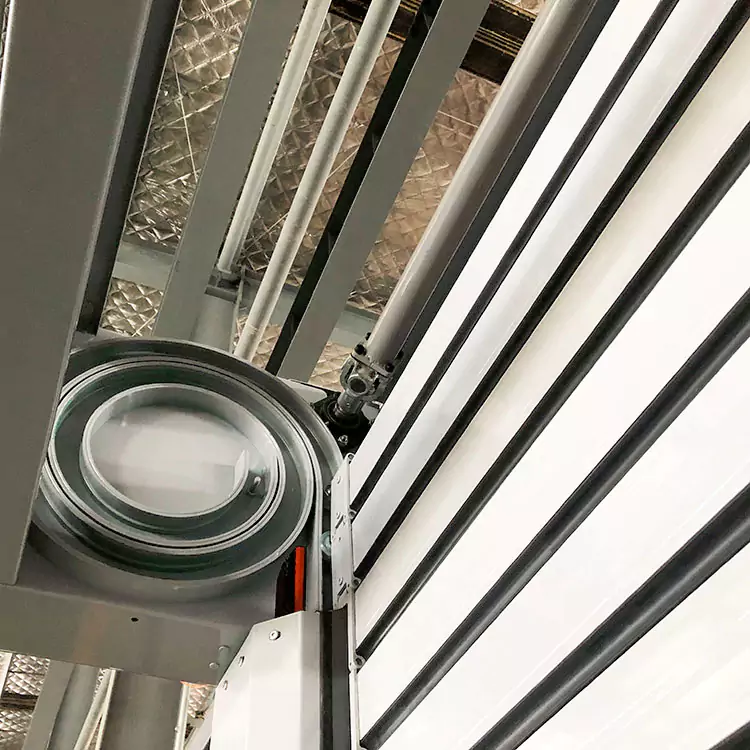

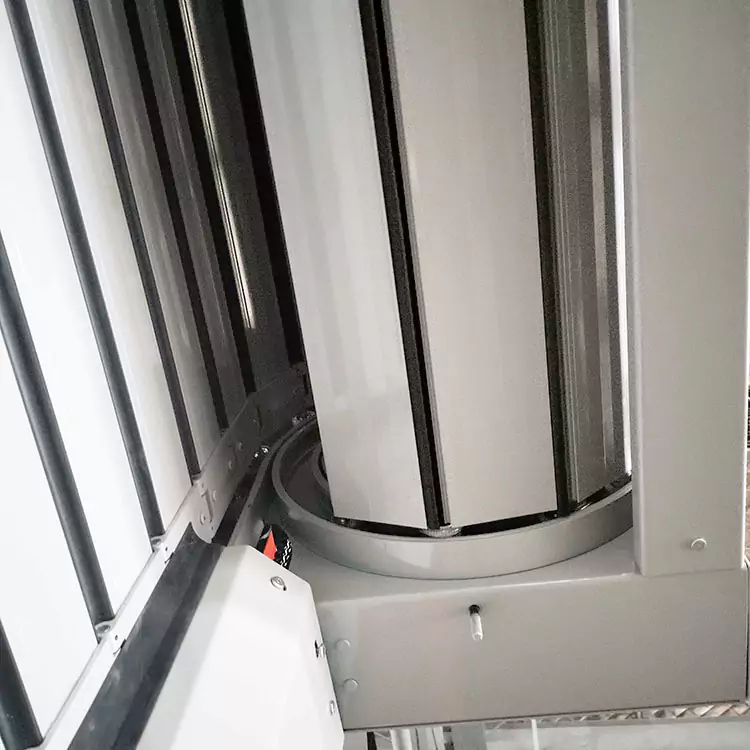

Three lift styles

According to the door opening headroom, there are 3 lift styles optional.
Circular Spiral guide rail headroom: Min 0.85m for 3m height door. Min 1m for 5m height door
Oval Spiral guide rail headroom: Min 0.7m.

Blowing Machine Bottle Making

Machine Bottle Moulding Machine.

Multiple opening methods

Multiple opening methods: geomagnetism, radar, mobile phone wifi, remote control, wall switch, emergency power failure to open the door, etc. Safety device Infrared, bottom side of airbag.

Between the door panels, all sides are equipped with sealing strips, the door panels are filled with polyurethane foam material,heat insulation and noise prevention

Norton industrial door motor: Introduced British technology, frequency conversion motor, frequency adjustment with the change of door height and weight, anti-pressure and anti-collision, rebound when encountering resistance, slow start and slow stop.

Motor

Electric control box: The electric control box has a LED touch screen with on, off, and stop buttons, and an emergency stop
switch. In case of emergency, the control loop power can be quickly cut off to protect people and machines.

Function of LED touch screen: displaying the fault code, easily modify the operating parameters and set the system password.

Limit: Absolute encoder
Output speed: 100R/Min Function: adjustable speed, rebound resistance, Chinese and English menu, fast clutch, slow start and slow stop

Output aperture: Dia.25.4mm Operating temperature range: -20 to 45°C A variety of interfaces: infrared, airbags, small door contact switches, warning lights, geomagnetic and so on。

Production of quick shutter doors in warehouses：

Qingdao Norton Door Technology Manufacturing Co., Ltd. aims to meet the needs of customers in the production of fast shutter doors in warehouses, and provides one-stop services from design, production to installation and maintenance to ensure that customers have no worries during use. The company has excellent production equipment and technical team, which can efficiently and accurately complete the production task of fast shutter doors in warehouses.

Packaging of quick shutter doors in warehouse:
We promise that the product is ready for installation when it is delivered, and the installation can be easily completed without additional operation, making your use more convenient and worry-free.

Packing Details :

For full container order, carton box package.  For partial container order, packed by wooden box.

Delivery
